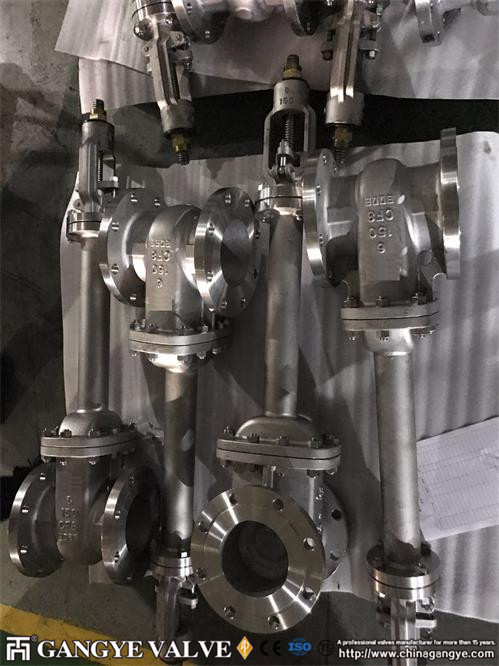

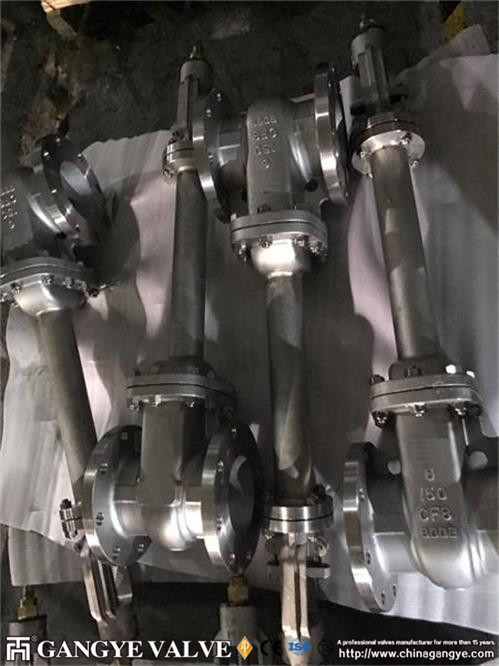

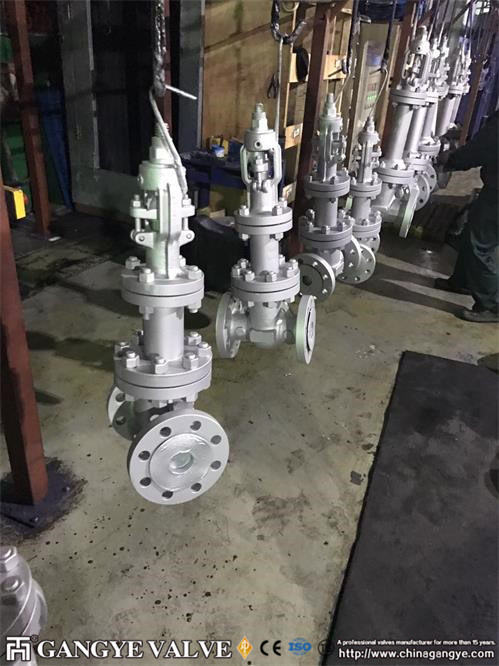

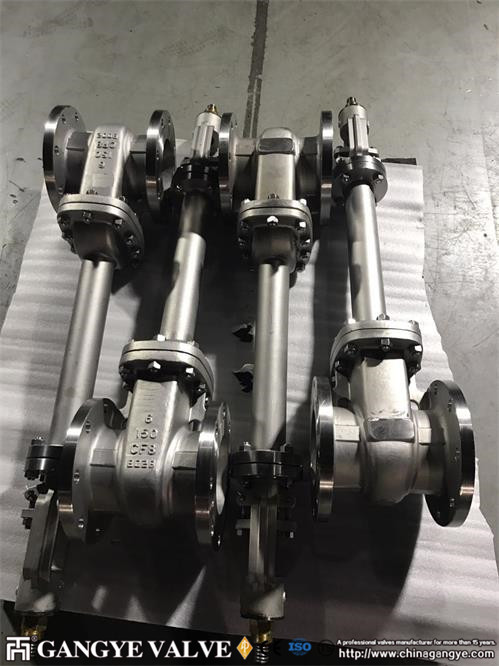

Bellows Sealed Gate Valve

Bellows Sealed Gate Valve, API 600, FLG 150 LB R.F. (125-250 Ra), Cast ASTM A351 GR.CF8, 304SS Trim,Flanged ends, bolted bonnet, OS&Y, flexible wedge,integral seat ring,

Hot oil system, steam system, hot and cold water system etc.
Advantage
1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
3.Grease nipple. It can direct lubricate the stem, nut and sleeve.
4.Ergonomic hand wheel. It provide longer service life and easier operation.
Technical specification
Design standard: ASME B16.34
Face to face dimension: ASME B16.10
Flanged ends: ASME B16.5
Test & inspection: API 598
Performance specification

Nominal Pressure

PN

Test Pressure

Strength test

1.5PN

MPa

Sealing test

1.1PN

Gas seal test

0.6

Bellows test

1.1PN

Suitable temp

-196℃~600℃
