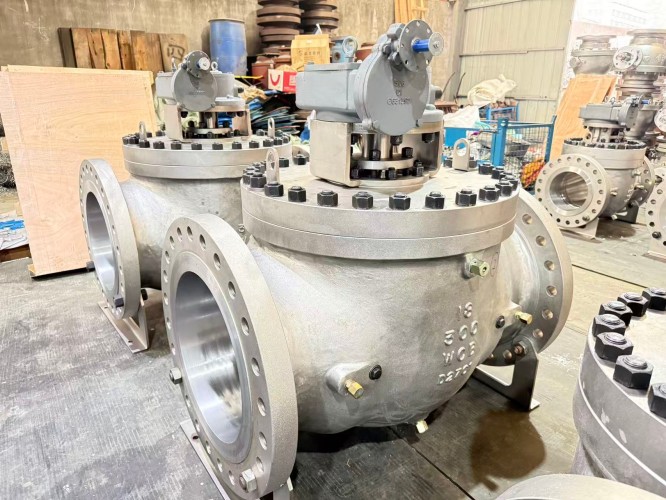

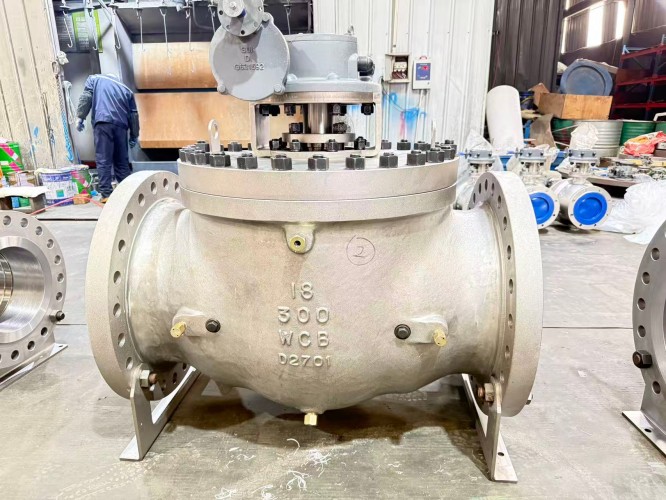

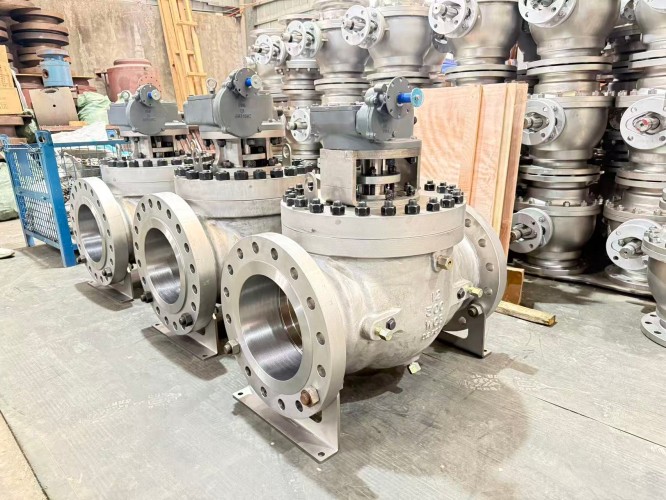

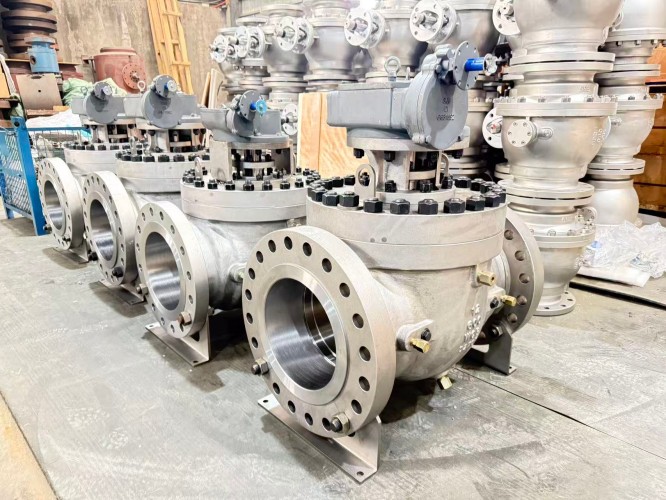

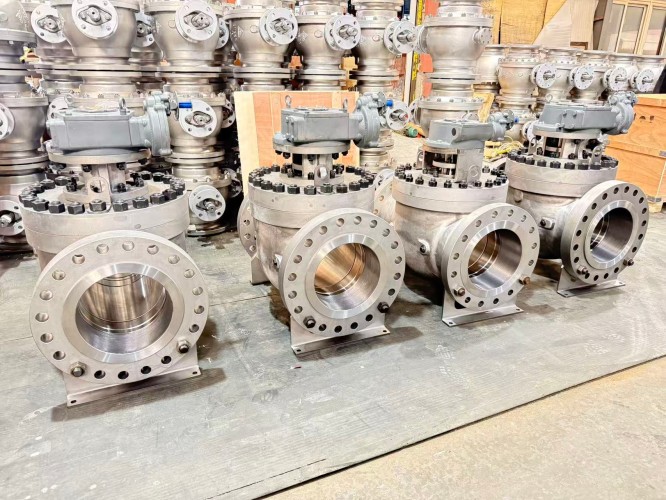

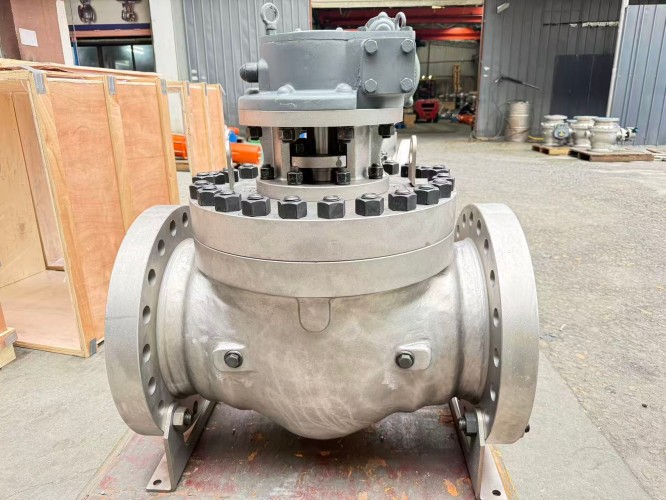

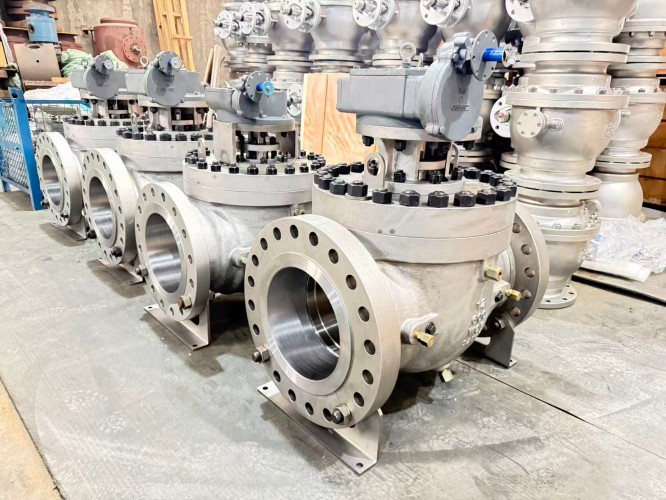

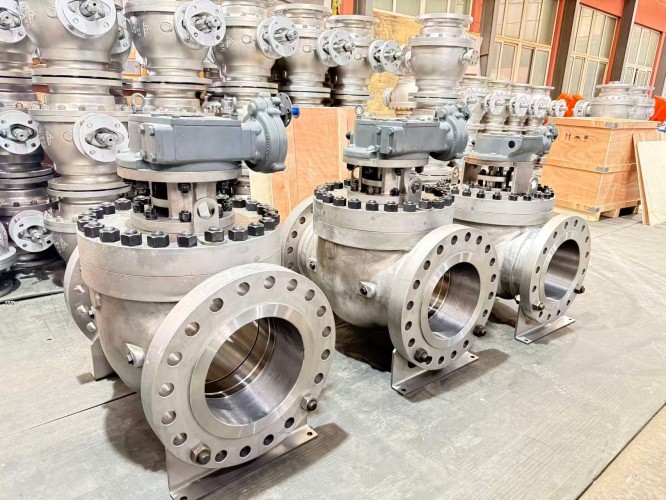

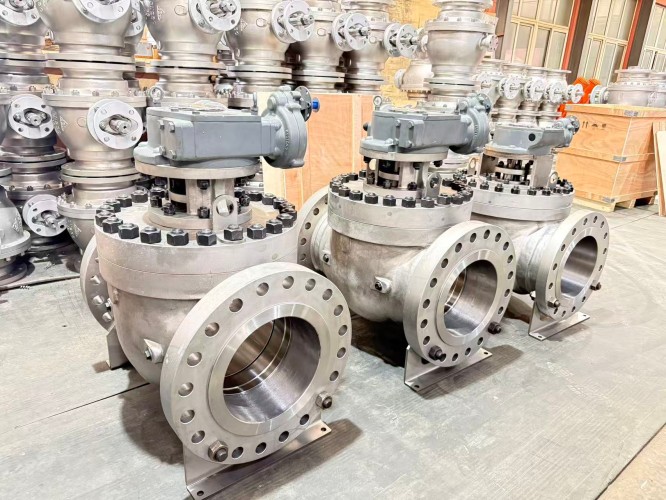

12 Inch 600LB WCB Trunnion Mounted Ball Valve for Natural Gas Fuel Gas Supply Systems

Product Introduction​
Engineered in strict compliance with API 6D, ASME B16.34, and ANSI B16.5 international standards, our BA6A1 model 12 Inch (DN 300) 600LB WCB trunnion mounted ball valve is purpose-built for natural gas fuel gas supply systems, delivering uncompromising sealing performance, pressure resistance, and operational stability for critical midstream and downstream gas pipeline applications. Designed to withstand harsh operating conditions in natural gas transmission and distribution networks, this valve eliminates fugitive emissions, prevents media leakage, and ensures long-term, maintenance-free operation for industrial fuel gas systems, pipeline stations, and gas processing facilities.​
As a core control component for natural gas handling, this trunnion mounted ball valve addresses the unique challenges of gas media transportation, including pressure fluctuations, temperature variations, and corrosive trace components in natural gas, making it the preferred choice for global oil and gas engineering contractors, pipeline project operators, and industrial gas end-users.

Core Technical Parameters (API/ASME Standard Compliant)

Parameter Item
Specification Details
Valve Size
NPS 12 (DN 300)
Piping Class
3A1
Valve Type
Trunnion Mounted Ball Valve
Valve Model/Code
BA6A1
Applicable Medium
Natural Gas
Pressure Rating
Class 600
End Connection
Flanged RF, ANSI B16.5
Operating Pressure
43 bar.g (Max. 43.2 bar.g)
Operating Temperature
96-120 °C (Max. 120 °C)
Design Pressure
50 bar.g
Design Temperature
150 °C
Application
Fuel Gas Supply System
Material Configuration
WCB Body, F316 Ball, RPTFE Seat, Worm Gear Operator

Key Product Advantages for Natural Gas Applications

1. Zero-Leak Sealing Performance (API 6D Certified)

Featuring a precision-machined F316 stainless steel ball and wear-resistant RPTFE seat assembly, this trunnion mounted ball valve achieves bi-directional bubble-tight sealing, fully meeting API 6D fugitive emission standards. The self-adjusting seat design compensates for wear and thermal expansion, eliminating natural gas leakage even under long-term cyclic operation, ensuring environmental compliance and workplace safety for gas supply systems.

2. Superior Pressure & Temperature Resistance

Constructed with heavy-duty WCB carbon steel body and engineered for Class 600 pressure rating, the valve withstands maximum operating pressure of 43.2 bar.g and design pressure of 50 bar.g, with robust tolerance for operating temperatures up to 120°C and design temperature of 150°C. This rugged design maintains structural integrity and operational stability during pressure surges and temperature fluctuations common in natural gas transmission lines.

3. Reliable Trunnion Mounted Design

Unlike floating ball valves, our trunnion mounted structure provides fixed ball support, reducing operating torque and minimizing seat wear. This design enables smooth, low-effort operation even under full pressure load, extending service life and reducing maintenance frequency for critical natural gas fuel supply systems. The worm gear operator ensures precise, effortless valve actuation, suitable for manual operation in remote pipeline stations and industrial facilities.

4. Compliance & Material Durability

All materials and manufacturing processes align with ASME B16.34 and API 6D specifications, ensuring compatibility with natural gas media and resistance to mild corrosive components in fuel gas. The WCB body offers excellent mechanical strength and weldability, while F316 ball delivers corrosion resistance and dimensional stability, making the valve ideal for long-service natural gas pipeline applications.

Target Application Scenarios

  • Industrial Fuel Gas Supply Systems: Power plants, refineries, chemical plants, and manufacturing facilities relying on natural gas as fuel source
  • Natural Gas Pipeline Stations: Midstream transmission pipelines, distribution networks, and pressure regulating stations
  • Gas Processing & Treatment Facilities: Natural gas purification, compression, and metering stations
  • Oil & Gas Engineering Projects: EPC projects, pipeline retrofits, and new construction gas control systems

Conclusion

Our 12 Inch 600LB WCB trunnion mounted ball valve (Model BA6A1) is a high-performance, standards-compliant solution engineered exclusively for natural gas fuel gas supply systems. Combining superior sealing, exceptional pressure-temperature resistance, and long-term operational reliability, this valve minimizes downtime, reduces maintenance costs, and ensures safe, efficient natural gas transportation for global energy projects.
We offer customized valve solutions, technical support, and after-sales service tailored to your natural gas pipeline project requirements. Contact our engineering team today to discuss your specifications and secure a reliable, cost-effective ball valve solution for your fuel gas system.
