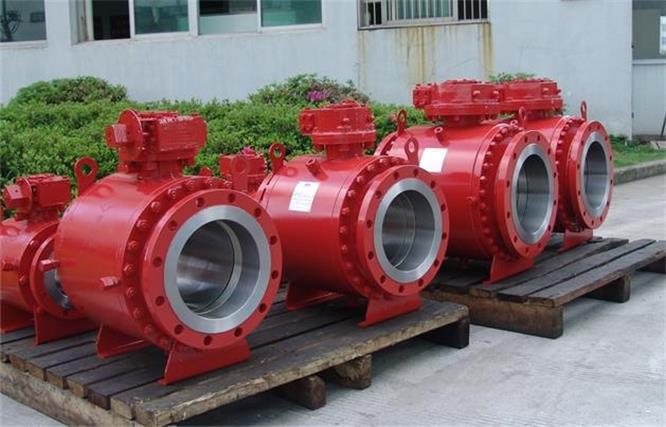

3 PC Forged Steel Ball Valve (1)

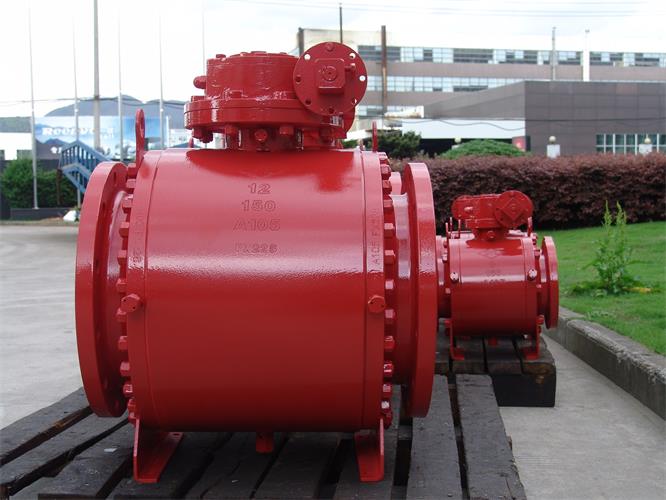

3 PC Forged Steel Ball Valve (2)

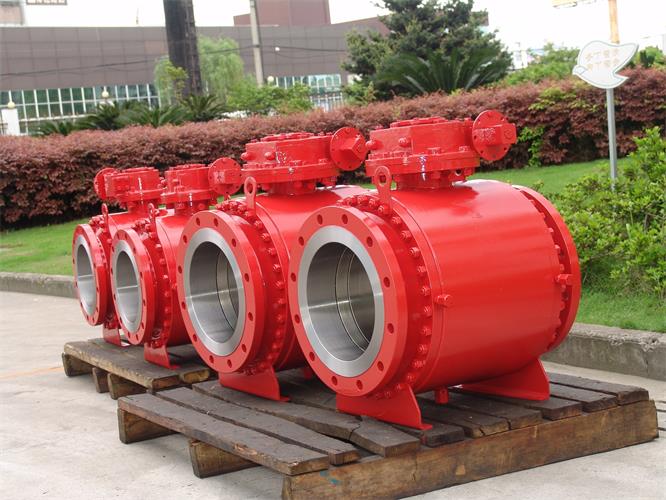

3 PC Forged Steel Ball Valve (4)

3 PC Forged Steel Ball Valve

Design Features:

Nominal Size Range: NPS 1/2” ~ 14”
Pressure Rating: Class 150LB – 2500LB
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)

Design Specifications:

Design: API 6D
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25
All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers’ requirements as applicable.

Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels

Body Material:

F304, F316, A105, LF2, F11

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

Quality Control (QC):

The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

Pressure Testing:

Each valve is pressure tested in accordance with API 6D, API 598, or special customers’ requirements as applicable.
