Forged RTJ Casted Stainless Steel Ball Valve

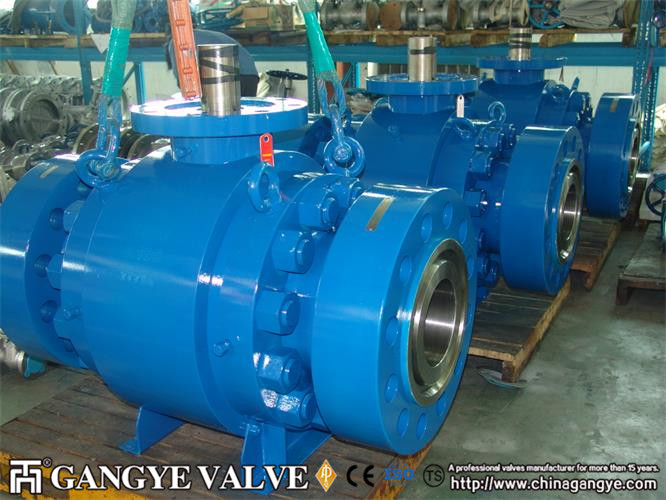

Forged RTJ Casted Stainless Steel Ball Valve (1)

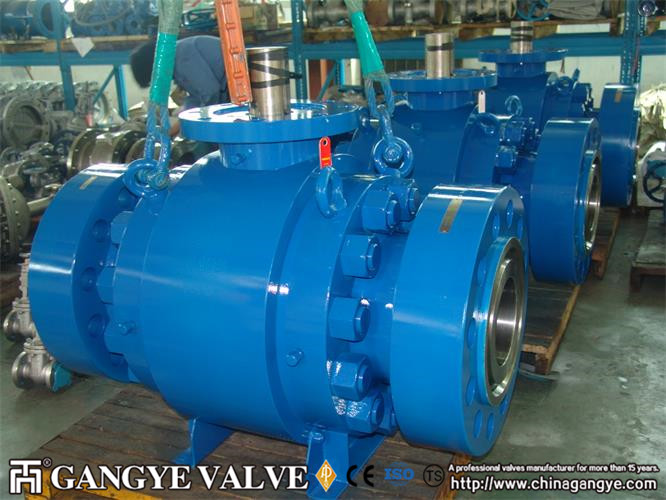

Forged RTJ Casted Stainless Steel Ball Valve (3)

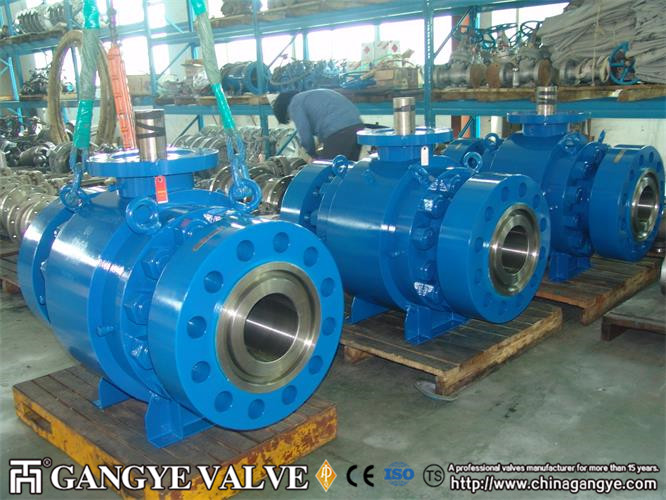

Forged RTJ Casted Stainless Steel Ball Valve (2)

Forged RTJ Casted Stainless Steel Ball Valve

Design Features:

Nominal Size Range: NPS 1/2” ~ 14”
Pressure Rating: Class 150LB – 2500LB
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)

Design Specifications:

Design: API 6D
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25
All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers’ requirements as applicable.

Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels

Body Material:

A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

Quality Control (QC):

The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

Pressure Testing:

Gangye valve is pressure tested in accordance with API 6D, API 598, or special customers’ requirements as applicable.
