WCB Nozzle Check Valve Design Specifications: Design: API 6D Wall thickness: API 6D,ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as [...]

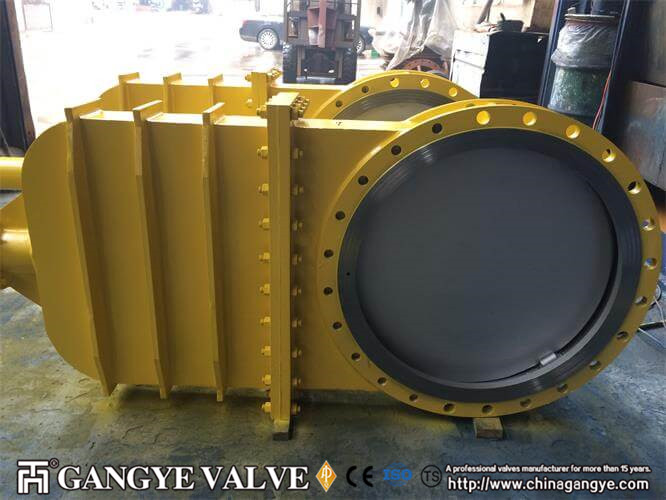

Non-rising stem knife gate valve，PN10,DN650 Manual Knife Gate Valve Specifications 1. Certification: ISO9001, API600, CE, TS 2. Size: 2″-48”, DN50 ~ DN1200 3.Pressure range: 0.6MPa,1.0MPa,1.6MPa,ASME 150LB 4.The main material: Cast iron, Ductile iron 5.Temperature: -60 ~ + 100 ℃ 6.Operation: electric, gear boxes, pneumatic, hydraulic 7. Brand Name: GANGYE or OEM 8. Guarantee: 12months 9. [...]
Double flange Triple offset buttefly valve,PN40 DN400 DN500 Design and Manufacture: API609, ASME B16.34 Face to face (end to end): API 609, ASME B16.10 Flanged connection: ANSI B16.5 Butt welded end: ANSI B16.25 Test and inspection: API 598, Wall thickness: API 600 Body Material: A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel) All [...]
Double Eccentric Wafer Butterfly Valve , short pattern, 150PSI, 84" Design and Manufacture: API609, ASME B16.34 Face to face (end to end): API 609, ASME B16.10 Flanged connection: ANSI B16.5 Butt welded end: ANSI B16.25 Test and inspection: API 598 Wall thickness: API 600 All valves are designed to comply with the requirements of ASME [...]

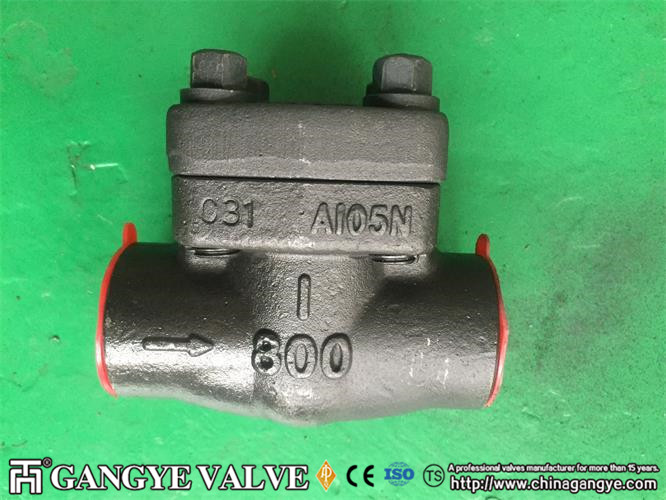

BW Forged Steel Check Valve Design Features: Pressure Range: Class 150 ~ 2500 Nominal Size Range: DN 50 ~ 900, NPS 2" ~ 36" Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Bolted Bonnet (BB) Cover Swing Type, Anti-Rotation Disc Renewable seat rings Design Specifications: Design: API602, BS5352 Pressure-temperature rating: ASME B16.34 [...]
Design Features: Pressure Range: Class 150 ~ 2500 Nominal Size Range: DN 15 ~ 900, NPS 1/2" ~ 36" Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW), Threaded (NPT), Screwed Full Port Design Out Side Screw and York (OS & Y) Bolted Bonnet (BB) Rising Stem or Non-Rising Stem Hand Wheel [...]

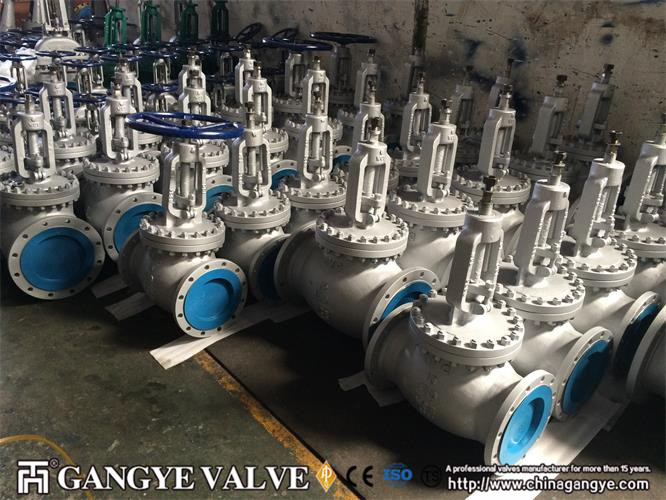

Bolted Bonnet Carbon Steel Globe Valve Design Features: Pressure Range: Class 150 ~ 2500 Nominal Size Range: DN 50 ~ 400, NPS 2" ~ 16" Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Out side screw and york (OS & Y) Bolted Bonnet (BB) Rising stem with hand wheel Renewable seat ring Design Specifications:Design: BS1873 Wall thickness: [...]
