WCB Pressure seal flanged type Tilting Disk Check Valve -Gangye Valve Design Specifications: Design: API 6D Wall thickness: API 6D, ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements [...]

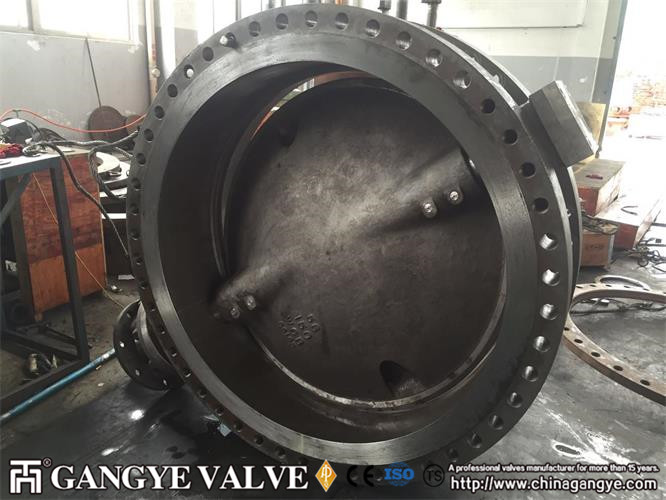

JACKETED BUTTERFLY VALVE, BODY WCB, DISC CF8M, SHAFT 17-4PH, SEAT 13CR, 300LB 32" Overview The Triple-eccentric design:shaft from the centerline of sealing surface to form the 1st eccentric;the shaft offsets from centerline of pipeline to form the 2nd eccentric;and the scalene cone form the 3rd eccentric.This design can make iffectively use of the cam effect,and completely eliminate the friction between the seat and sealing surface in the [...]
Lined Lug Butterfly Valve Body: Cast iron, ductile iron（GGG25/GGG20/GGG50） Disc: Ductile iron (nickel coated), GGG25/GGG20/GGG50/aluminum bronze, stainless steel. Shaft: 416, 410,stainless steel. Sealing: NBR, EPDM or customized. Type Available: Wafer type Sizes Available: DN25mm to DN1200mm (1" to 48") Pressure Range: 150LB Materials Standard:API DIN and etc. Basic Design: API609, BS5155, EN593, MSS SP-67 Face [...]
3-PC body forged floating ball valve Floating ball valve, 3-pc body, body: A105, trim: F6A, seat: NYLON, full bore, lever operated,sw, 1500lb 1" Esign Features: Nominal Size Range: NPS 1/2” ~ 14” Pressure Rating: Class 150LB - 2500LB Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Design Specifications: Design: API599 API6D Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding [...]
Fully rubber lined wafer check valve Check valve dual plate ANSI 150# body : ASTM A216 WCB+NEOPRENE Disc: BS1400 AB2 Seat: SOFT NEOPRENE Short structural length,only 1/4~1/8 of that of traditional flanged check valve; Low volume,light weight,only 1/4~1/20 of those of traditional flanged check valve; Quick valve disc closedown,low water hammer pressure; Applicable for and easily installed for vertical or horizontal pipelines; Smooth flow passageway and small fluid resistance; Flexible action [...]

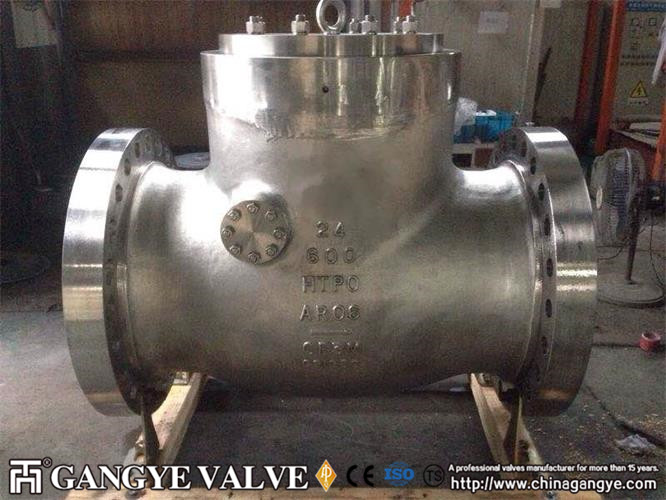

Pressure seal flanged type Tilting Disk Check Valve Design Specifications: Design: API 6D Wall thickness: API 6D, ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements [...]

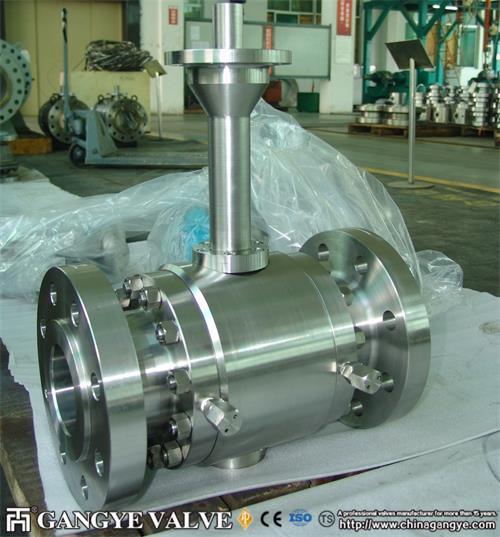

API Flanged Cryogenic Ball Valve Design Features: Nominal Size Range: NPS 1/2” ~ 14” Pressure Rating: Class 150LB - 2500LB Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Design Specifications: Design: API 6D Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME [...]

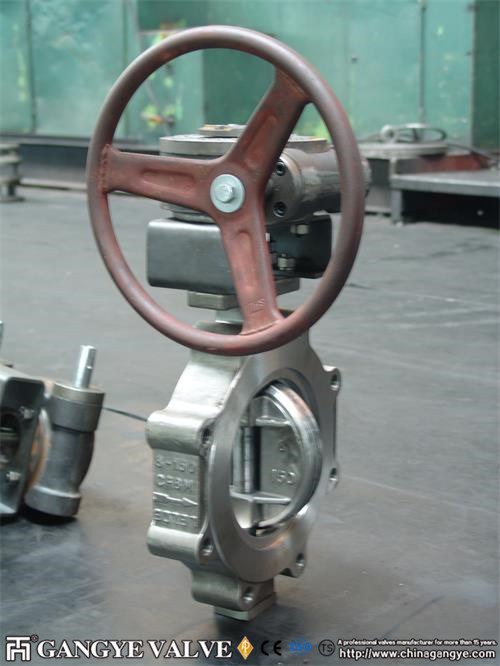

API Lug type butterfly valve Overview The Triple-eccentric design:shaft from the centerline of sealing surface to form the 1st eccentric;the shaft offsets from centerline of pipeline to form the 2nd eccentric;and the scalene cone form the 3rd eccentric.This design can make iffectively use of the cam effect,and completely eliminate the friction between the seat [...]

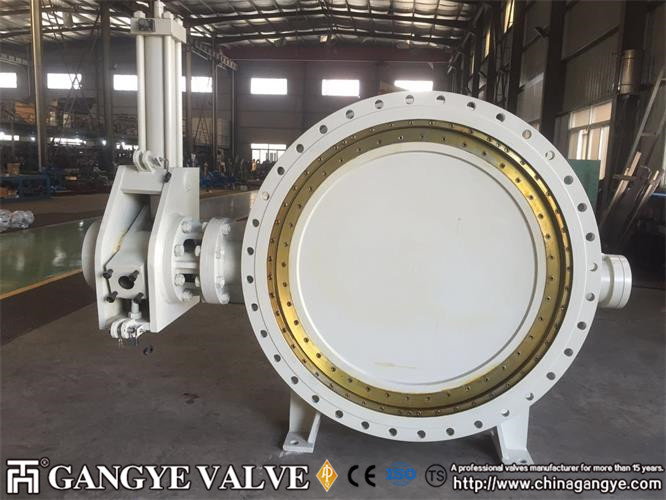

DN1500 WCB Counter-weight Hydraulic Control Check Butterfly Valve Gangye Valve Counter-weight Hydraulic Control Check Butterfly Valve Purpose Counter-weight Hydraulic Control Check Butterfly Valve are designed for installation at outlet of a pump in pipelines with water medium and served as both globe valves and check valves.The closing time and speed can be regulated [...]

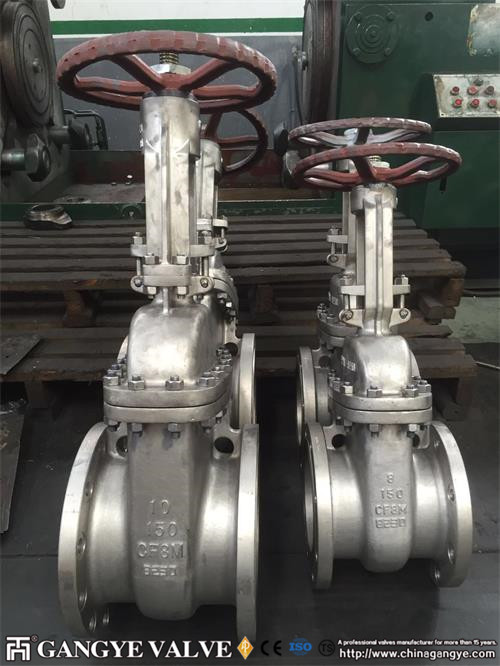

Stainless steel API Gate valve, CF8M/316SS Stainless steel API Gate valve, CF8M/316SS Stainless steel API Gate valve, CF8M/316SS Stainless steel API Swing check valve, CF8M/316SS， RF, ANSI 150 6" Stainless steel API Gate valve, CF8M/316SS Stainless steel API Gate valve, CF8M/316SS， RF/BW, ANSI 150 3",4",6",8",10" Stainless steel API Swing check valve, CF8M/316SS， RF, ANSI 150 6" Standards Design and Manufacture:Cast steel gate valve to [...]
