Forged Steel Wafer Rising Check Valve

//Forged Steel Wafer Rising Check Valve

Forged Steel Wafer Rising Check Valve

Forged Steel Wafer Rising Check Valve

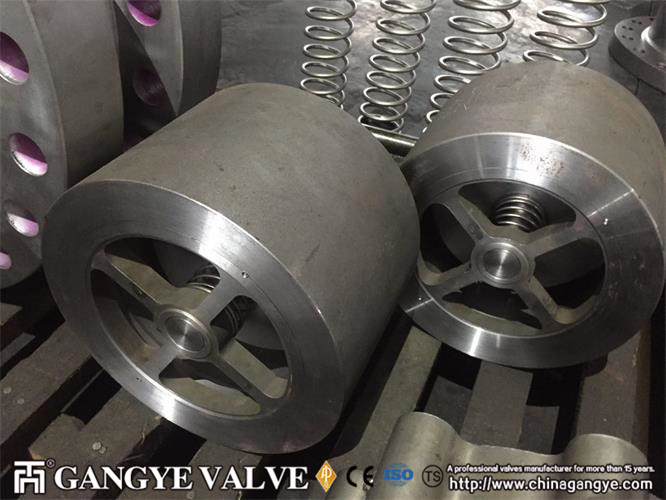

Forged Steel Wafer Rising Check Valve (2)

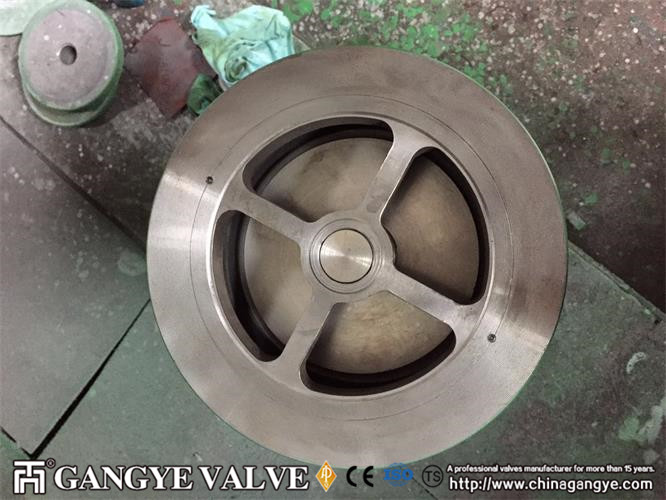

Forged Steel Wafer Rising Check Valve (3)

Forged Steel Wafer Rising Check Valve (4)

Design Specifications:

Design: API 6D
Wall thickness: API 6D,ASME B16.34
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25

All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers’ requirements as applicable.

Body Material:

A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel), A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

Quality Control (QC):

The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

Pressure Testing:

Gangye valve is pressure tested in accordance with ASME B16.34, API 598, or special customers’ requirements as applicable.
