Design Features: Nominal Size Range: NPS 1/2” ~ 14” Pressure Rating: Class 150LB ~ 900LB Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW) Design Specifications: Design: API 599, API 6D Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME [...]
Design Features: Pressure Range: Class 150 ~ 2500 Nominal Size Range: DN 15 ~ 900, NPS 1/2" ~ 36" Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW), Threaded (NPT), Screwed Full Port Design Out Side Screw and York (OS & Y) Bolted Bonnet (BB) Rising Stem or Non-Rising Stem Hand [...]

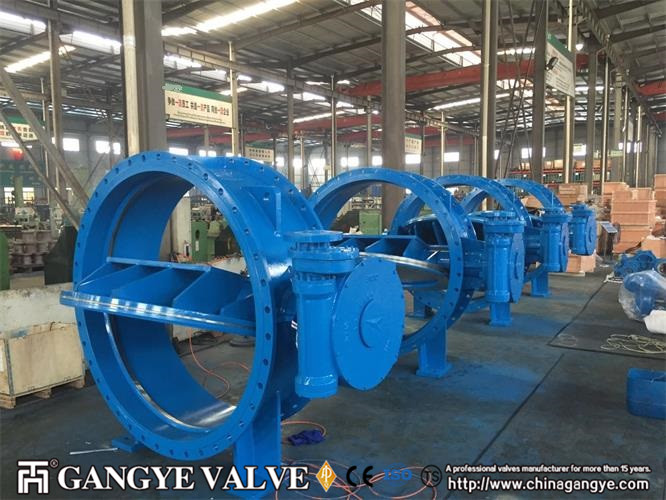

Product DN1500 Double-eccentric Flanged Type Metal Sealing Butterfly Valves Nominal diameter:DN 500-DN 2000 ( 20'' - 80'' ) Nominal pressure:PN 6-PN 25 ( 86Lb - 150Lb ) Design standards:AWWA C504 / API 609B / EN593 (BS5155&DIN3354) Structural length:AWWA C504 / API 609B / EN558-1 Series 13 &14 (BS5155&DIN3202) Flange connection:AWWA C207 / ASME B16.5 B16.47 B16.1/ EN1092-1 [...]

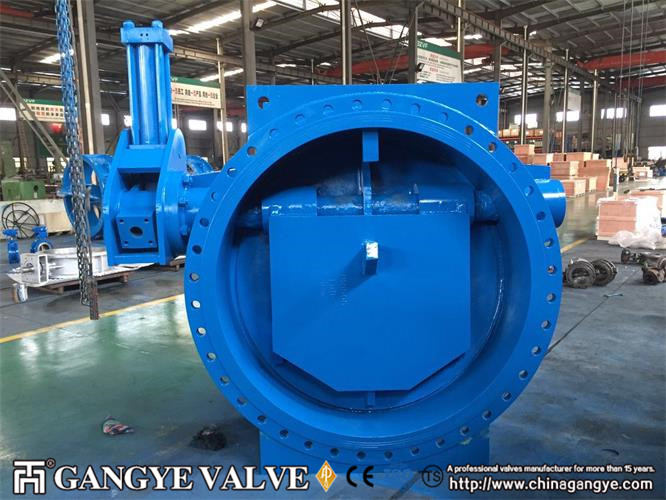

Product name:butterfly type check valve Nominal diameter:DN 200-DN 1600 ( 8'' - 64'' ) Nominal pressure:PN 5-PN 25 ( 86Lb - 300Lb ) Design standard:API B594 BS5153 Structure length:API 609 / AWWA C504 / ISO 5752 / EN558-1 Series 13 & 14 Flange connection:ASME B16.5 B16.47 AWWA C207 ISO7005 / EN1092-1 EN1092-2 Product features Double [...]

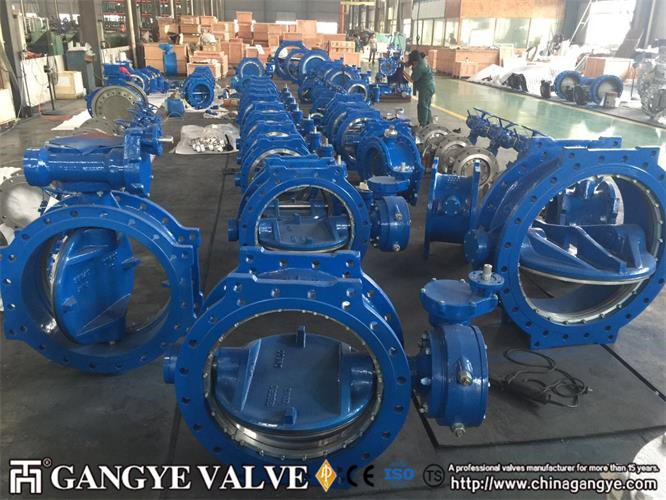

Product Name:double eccentric butterfly valve soft sealing flange Nominal diameter:DN 50-DN 3600 ( 2'' - 144'' ) Nominal pressure:PN 2.5-PN 50 ( 86Lb - 300Lb ) Design standards:AWWA C504 / API 609B / EN593 (BS5155&DIN3354) Structural length:AWWA C504 / API 609B / EN558-1 Series 13 &14 (BS5155&DIN3202) Flange connection:AWWA C207 / ASME B16.5 B16.47 B16.1/ EN1092-1 EN1092-2 [...]

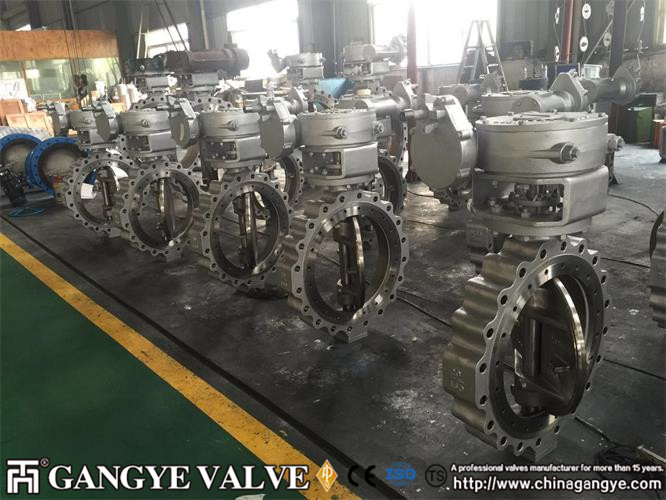

Double-eccentric Lug Type High performane Butterfly Valve Product name:double eccentric soft sealing lug butterfly valve Nominal diameter:DN 50-DN3600 ( 2'' - 144'' ) Nominal pressure:PN 2.5-PN 50 ( 86Lb - 300Lb ) Design standard:AWWA C504 / API 609B / EN593 (BS5155&DIN3354) Structure length:AWWA C504 / API 609B / EN558-1 Series 13 &14 (BS5155&DIN3202) Flange connection:AWWA [...]

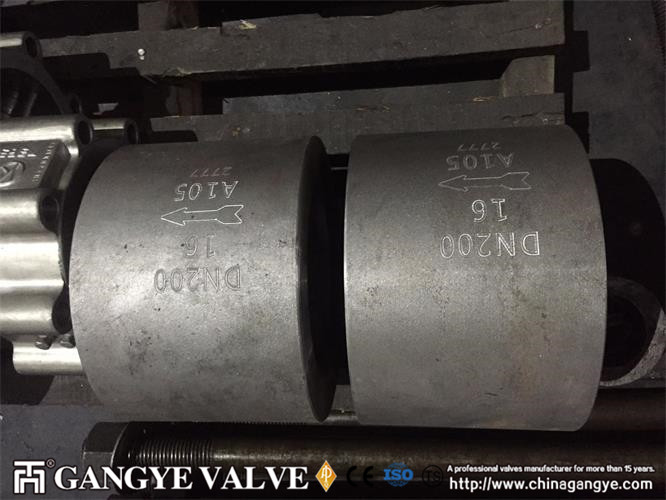

Forged Steel Wafer Rising Check Valve Design Specifications: Design: API 6D Wall thickness: API 6D,ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements of ASME B16.34, and the ASME as [...]

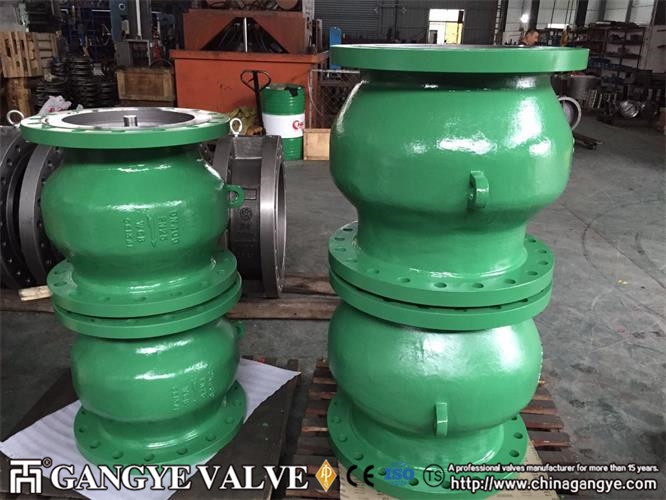

WCB Nozzle Check Valve Design Specifications: Design: API 6D Wall thickness: API 6D,ASME B16.34 Pressure-temperature rating: ASME B16.34 Face-to-face dimensions for butt weld and flanged valves: ASME B16.10 Flange design: ASME B16.5 Butt welding design: ASME B16.25 All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as [...]
Non-rising stem knife gate valve，PN10,DN650 Manual Knife Gate Valve Specifications 1. Certification: ISO9001, API600, CE, TS 2. Size: 2″-48”, DN50 ~ DN1200 3.Pressure range: 0.6MPa,1.0MPa,1.6MPa,ASME 150LB 4.The main material: Cast iron, Ductile iron 5.Temperature: -60 ~ + 100 ℃ 6.Operation: electric, gear boxes, pneumatic, hydraulic 7. Brand Name: GANGYE or OEM 8. Guarantee: 12months 9. [...]

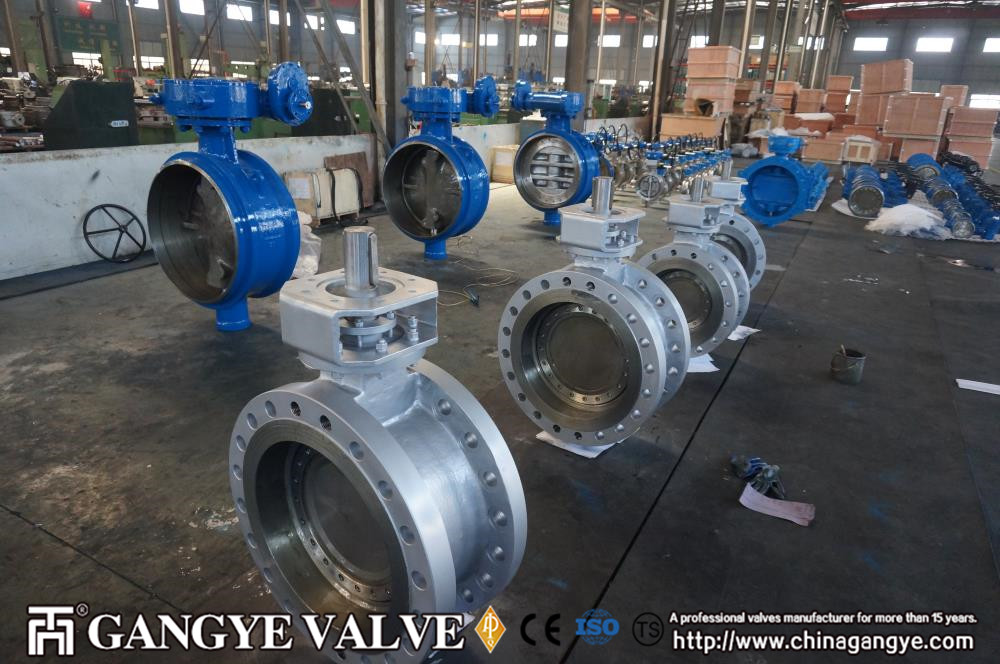

Double flange Triple offset buttefly valve,PN40 DN400 DN500 Design and Manufacture: API609, ASME B16.34 Face to face (end to end): API 609, ASME B16.10 Flanged connection: ANSI B16.5 Butt welded end: ANSI B16.25 Test and inspection: API 598, Wall thickness: API 600 Body Material: A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel) All [...]
